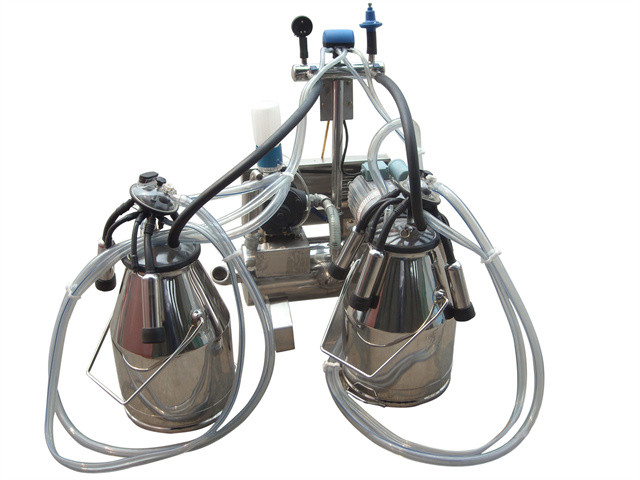

The portable milking machines are mainly constituted by:
1. Milking system: pulsator, claw, stainless steel teat cups, milking liners and tubes, stainless steel milk bucket etc.
2. Vacuum system: vacuum pump (blade), vacuum tank, auto-stop vacuum valve, muffler, vacuum gauge, vacuum ball-valve, electric motor, etc.
|
Model Number |
SM-01 |
|
|
Product Name |
Vacuum Pump Type Bucket Milking Machine |
|
|
Type |
Vacuum Pump Type |
|
|
Vacuum Pump |
Exhaust Capacity |
200/250 L/Min |
|
|
Vacuum Pressure |
0.04-0.05Mpa (adjustable) |
|
Electric Motor |
Power & Voltage |
0.75Kw or 1.1Kw, 220V/50Hz |
|
|
Speed |
1440 rpm |
|
Pulsator |
Frequency |
60-80 Times/Min |
|
|
Rate |
60:40 |
|
Milking Claw/Teat Cup |
1 or 2 Sets |
|
|
Stainless Steel Milking Bucket |
25L×1 or25L×2 |
|
|
Working Capacity |
12-14 or 24-28 cows/hour |
|
|
Employees Needed for Milking |
1 |
|
|
Frame Material |
Stainless Steel |
|
