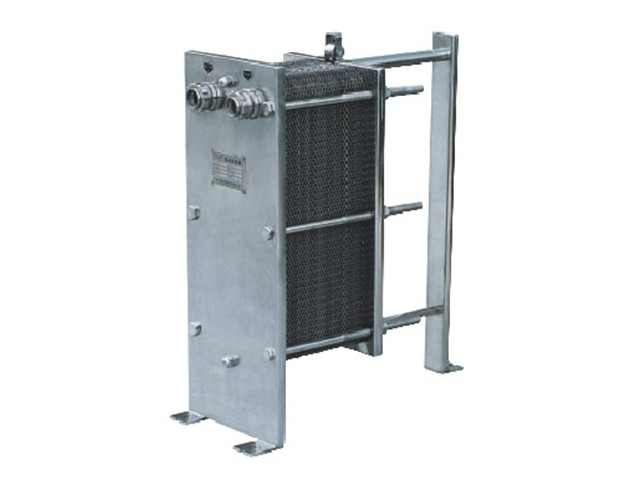

The plate type heat exchanger is an ideal device for heat exchange of liquid to liquid and liquid to steam. It has such features as high heat exchanging efficiency small heat loss, compact structure. Light weight, small landing area, convenient installation and cleaning, wide application range and long service life etc.
Our plate heat exchanger steam hot cooling water heat exchanger for liquids milk drinks beverages
applicable for the cooling and heating of liquid products, such as milk beverages, CIP cleaning liquid, and also applicable for the pasteurized sterilization in some applications.
Details:
|
Specification \ Model |
BR0.05 |
BR0.1 |
BR0.2 |
|
Sheet heat exchange area m2 |
0.05 |
0.1 |
0.22 |
|
Sheet size mm |
500 ×168 |
660×250 |
970×330 |
|
Sheet thickness mm |
0.8 |
0.8 |
0.8 |
|
Corner pore diameter mm |
38 |
60 |
75 |
|
Pipe joint diameter mm |
28 |
38 |
46 |
|
Herringbone corrugation |
|||
|
Corrugation spacing mm |
10 |
12 |
12 |
|
Average sheet spacing mm |
3.8 |
4.2 |
4.2 |
|
Combined heat exchange area m2 |
0.5~5 |
4~10 |
10~38 |
|
Max. pressure MPa |
0.4~2 |
||
|
Max. temperature ℃ |
Usually120~160℃，Special request250℃ |
||
|
Heat transfer coefficient W/M2℃ |
2000~6000 |
||
