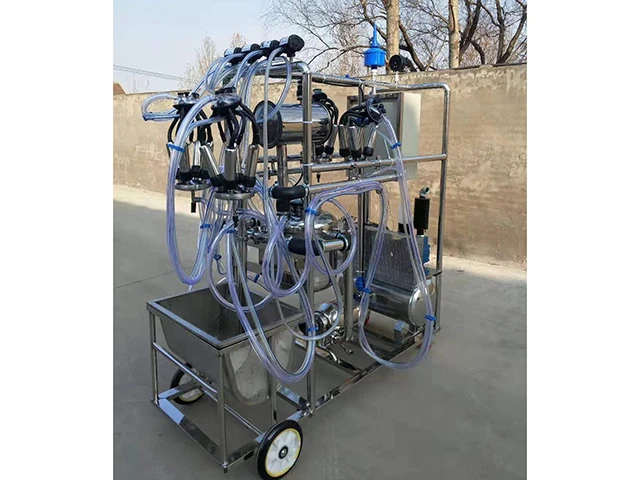

The portable mini milking parlor with washing tank are mainly constituted by:
1. Milking system: milk claw, teat cup shells, milking liners and tubes, milk receiver, milking pump, milk interceptor etc.
2. Vacuum system: pulsator, vacuum pump (blade) with oiler, vacuum tank, vacuum regulator, muffler, vacuum gauge, vacuum ball-valve, electric motor, etc.
3. Mobile frame (structure): portable trolley with wheels.
Specification:
|
Model Number |
PM4 |
|
|
Product Name |
Vacuum Pump Type Four-cow Milking Machine |
|
|
Type |
Vacuum Pump Type |
|
|
Vacuum Pump |
Exhaust Capacity |
500-800L/Min |
|
Vacuum Pressure |
0.04-0.05Mpa (adjustable) |
|
|
Electric Motor |
Power & Voltage |
1.5Kw, 380V/50Hz |
|
Speed |
1440 rpm |
|
|
Pulsator |
Frequency |
60-80 Times/Min |
|
Rate |
60:40 |
|
|
Milking Claw/Teat Cup |
4sets |
|
|
Stainless Steel Receiver tank |
50L×1 |
|
|
Working Capacity |
48-56cows/hour |
|
|
Employees Needed for Milking |
1 |
|
|
Frame Material |
Stainless Steel or Iron (as required) |
|
