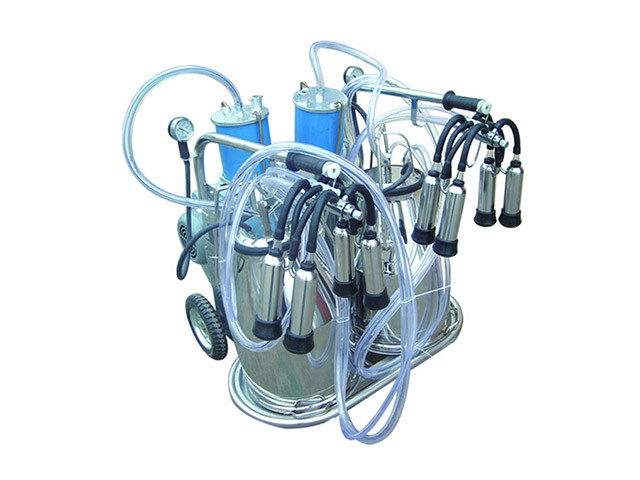

The portable milking machines are mainly constituted by:
1. Milking system: claw, stainless steel teat cups, milking liners and tubes, stainless steel milk bucket, etc.
2. Vacuum system: piston pump group, vacuum gauge, reducer, electric motor, etc.
3. Mobile frame (structure): portable trolley with wheels.
Specification:
|
Model Number |
PM-04 |
|
|
Product Name |
Piston Type Double-cow Milking Machine |
|
|
Type |
Piston Type |
|
|
Piston Pump |
Vacuum Pressure |
0.04-0.05Mpa (adjustable) |
|
Electric Motor |
Power & Voltage |
0.55Kw, 220V/50Hz |
|
Speed |
1440 rpm |
|
|
Pulsation Frequency |
64 Times/Min |
|
|
Milking Claw/Teat Cup |
2 Sets |
|
|
Stainless Steel Milking Bucket |
25L×2 |
|
|
Working Capacity |
20-24 cows/hour |
|
|
Employees Needed for Milking |
1 |
|
|
Frame Material |
Iron |
|
Description:
The portable milking machines are mainly constituted by:
1. Milking system: claw, stainless steel teat cups, milking liners and tubes, stainless steel milk bucket, etc.
2. Vacuum system: piston pump group, vacuum gauge, reducer, electric motor, etc.
3. Mobile frame (structure): portable trolley with wheels.
